Description:
There are fixed attenuator and variable attenuators.We offer LC,FC,SC,ST,MU fixed attenuator with different attenuation level.
Fixed attenuators can limit, or attenuate, the amount of light passing through to the exact level your project or application requires.Fixed Attenuators are used in applications where a pre-determined amount of light loss is specified.

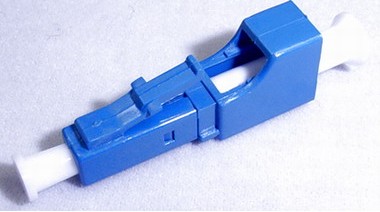

Female to male fixed attenuator
Flange type fixed attenuator
| Fiber optic attenuator Application | ||||||||
| Video & CATV | Data Networks | Telecommunication Networks | ||||||
| Fiber optic attenuator features | ||||||||
| Bellcore Compliant | Wavelength Independent (DWDM) | |||||||
| Durability (well over 100mw) | Simple and Reliable Structure | |||||||
| Specification | ||||||||
| Operating Wavelength: | SM: 1310nm, 1550nm MM: 850nm, 1300nm |
|||||||
| Return Loss: | Less than 50 dB (SPC) Less than 55 dB (UPC) Less than 65 dB (APC) |
|||||||
| Attenuation Accuracy: | +/-0.5 (1-10) +/-1.0 (11-30) |
|||||||
| Polarization Dependent Loss: | Less than 0.2dB | |||||||
| Maximum Optical Input Power: | 200mW | |||||||
| Operating Temp. Range: | -40 ~ 80 | |||||||
| ORDERING INFORMATION | ||||||||
| Optical connector | Attenuator Structure Type | Polish | Wavelength | Attenuation Level | ||||
| SC,FC,ST,LC,MU E2000,DIN |
Female to male Plug-in type | APC | 1310nm | 1dB to 30dB | ||||
| Adapter (Bulkhead) type | UPC | 1550nm | ||||||
| In-line type | 1310/1550nm | |||||||
| 850nm | ||||||||
| 1300nm | ||||||||
| 850/1300nm |
|
|||||||
