LC connector


Description of LC connector
LC stands for Lucent Connector. LC connector is push and pull type. The LC Connector uses a 1.25 mm ferrule, half the size of the ST.

Availability of LC connector

Housing kits without ferrule are available.
LC/PC and LC/APC are available.
single mode LC connector & multimode LC connector available
Simplex LC connector & duplex LC connector available

LC connectorlc connector kit

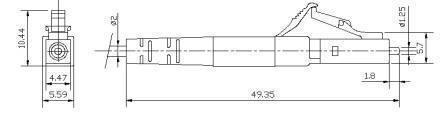

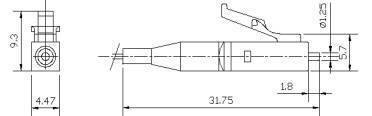

LC connector drawing

lc connector drawing

lc connector drawing



LC connector features

Low insertion loss and back reflection loss

Half the dimension of a regular connectors

Push & pull mechanism like RJ connectors

High precision alignment

Compact, pull-proof design

Complies with industry standards

Detachable clips for simplex as well as duplex connectors

Behind-the-Wall style short connector


LC connector specification



Single mode


Insertion Loss



Return Loss

>55 dB (PC)
>65 dB (APC)



<0.20 dB typical change, 1000 matings


Operating Temperature

-40 to + 85C

-40 to + 85C


LC connector application

Premise installations

Gigabit Ethernet

Active device termination

Telecommunication networks
