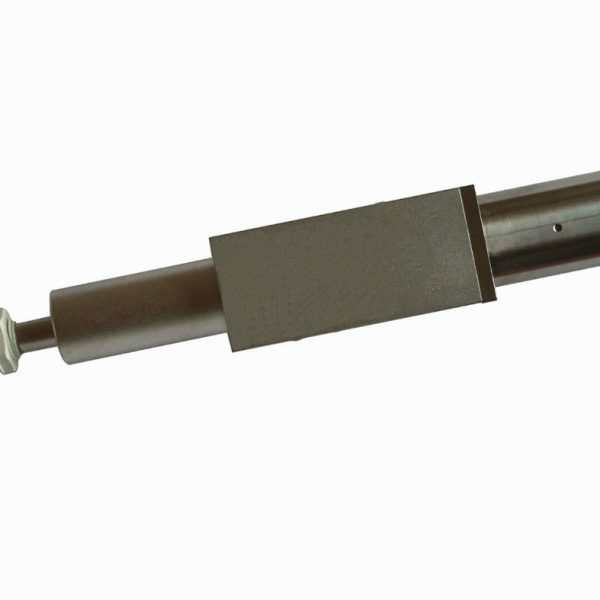

1064nm High Power Collimated Free-space Beam Output Isolator-50W

Availability: In Stock

Optical Power *

Package Dimensions *

Fiber Jacket on Input & Length *

Output Beam Diameter *

Fiber Length *

Volume Price :$70 - $95

Add multiple items to the quote list and get a quote from us .

Add the items to the quotation list, we will quote you price according to the total quantity , and you can continue to pay the order online if you accept our quotation.


  • High isolation
  • Low insertion loss
  • Excellent environmental stability and reliability
  • Research
  • Free space communications
  • Fiber lasers

Performance Specifications

Parameters Values
Central Wavelength(nm) 1064
Operating Wavelength Range(nm) ±10
Typ. Peak Isolation(dB) 35
Min. Isolation in Band (at 25℃) (dB) 30
Min. Transmission (%) 90
Nominal Output Beam Diameter(mm) 8±1
Min. Return Loss(Db) 50
Max. Optical Power (CW)(W) 30,50 or Specify
Max. Peak Power(kW) 30, 50
Fiber Type LMA-GDF-20/125, LMA-GDF-25/250,20/400 DC Fiber or Specify
Fiber Length(m) >2.5 or Specify
Armored Length(m) 2.0 or Specify
Tensile Load(kg) 1
Operation Temperature(℃) 0 ~ +50
Storage Temperature Range(℃) -20 ~ +75

* Above specification are for device without connector, and may change without notice.

Package Dimension

  • 0

    0 reviews

  • 5 Stars
    4 Stars
    3 Stars
    2 Stars
    1 Stars

There are no reviews yet.

Your email address will not be published. Required fields are marked *

High Power Isolator
High Power Isolator,which handles power from 300mW to 50W, minimize back reflection and back scattering in the reverse direction for any state of polarization. The device has an epoxy-free optical path and provides high isolation with low insertion loss over a wide wavelength range. It can be used in high power applications such as High Power Fiber Amplifier, Fiber Laser, and Instrumentation applications.
