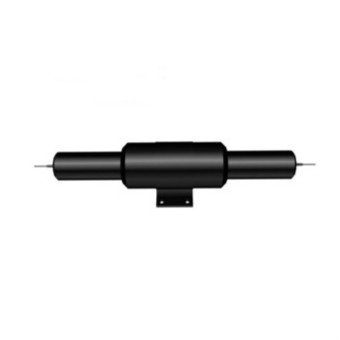

1053nm High Power Polarization Independent Isolator

Availability: In Stock

Optical Power *

Package Dimensions *

Fiber Jacket on Input & Output *

Connector Type on in &out *

Fiber Length *

Volume Price :$70 - $95

Add multiple items to the quote list and get a quote from us .

Add the items to the quotation list, we will quote you price according to the total quantity , and you can continue to pay the order online if you accept our quotation.
Tag:

Description

Features
Applications
  • High isolation
  • Low insertion loss
  • Excellent environmental stability and reliability
  • Research
  • Free space communications
  • Fiber lasers

Performance Specifications

Parameters Values
Central Wavelength(nm) 1053
Operating Wavelength Range(nm) ±5
Typ. Peak Isolation(dB) 35
Min. Isolation in Band (at 25℃) (dB) 25
Typ. Insertion Loss (dB) 0.80
Max. Insertion Loss (at 25℃) (dB) 1.20
Max. Polarization Dependent Loss (dB) 0.15
Min. Return Loss(dB) 50
Max. Peak Plwer(kW) 20
Optical Power (CW)(W) 50
Fiber Type 20/400 DC Fiber or  Specify
Tensile Load(N) 5
Operation Temperature(℃) 0 ~ +50
Storage Temperature Range(℃) -20 ~ +75

*Specifications may change without notice.
