Polarization Maintaining In-line Polarizer 1064nm

Availability: In Stock

Package *

Fiber Type *

Fiber Diameter *

Fiber Length *

Connector *

Volume Price :$70 - $95

Add multiple items to the quote list and get a quote from us .

Request a Quote
Add the items to the quotation list, we will quote you price according to the total quantity , and you can continue to pay the order online if you accept our quotation.
Tag:

Description

Features
Applications

  • High isolation
  • Low insertion loss
  • Excellent stability and reliability
  • High power handling
  • Fiber laser
  • Fiber amplifier
  • Sensor
  • Communications


Performance Specifications

Parameter In-line Polarizer
Operating Wavelength (nm) 1064
Bandwidth (nm) ±40
Typ. Insertion Loss(dB)@23℃ ≤0.8
Extinction Ratio (dB) ≥28
Return Loss (dB) ≥50/50
Fiber Type Option 1 PM980-PM980
Option 2 HI1060-PM980
Option 3 HI1060-HI1060
Optical Power (CW) (mW) ≤300
Operating temperature(℃) -5~+70
Storage temperature (℃) -40~+85

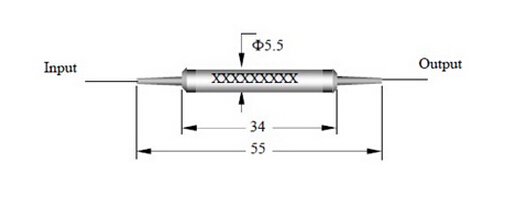

Dimension (mm) Φ5.5×L34


1. Above specifications are for device without connector.

2. For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower and ER will be 2dB lower.

3. For device with connector, key aligned to slow axis.
