SC connector


sc connector


Description of SC connector

SC stands for Subscriber Connector. SC connector offers excellent packing density, and its push-pull design resists fiber end face contact damage.

SC connector are inexpensive, trouble-free, and robust. SC connectors give precise positioning via their ceramic ferrules. The square, snap-in connector latches with a simple push-pull motion and is keyed. SC optical connector has a 2.5mm ferrule and molded housing for shielding. it has a 1000 mating cycles and have an insertion loss of 0.25 dB.

Availability of SC connector

SC connector house kits without ferrule are available.
SC/PC and SC/APC are available.
single mode SC connector & multimode SC connector available

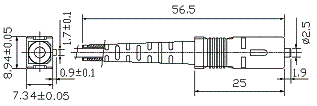

SC connector drawing

sc connector kit

sc connector kit

SC connector features

Low insertion loss and back reflection loss

Complies with industry standards

Ferrule end surface predomed

UL-rated plastic housing

Boots in a variety of colors

Telcordia style boots

Free-floating ceramic ferrule

SC connector specification



Single mode SC connector

Multimode SC connector

Insertion Loss



Return Loss

>55 dB (PC)
>65 dB (APC)



<0.20 dB typical change, 1000 matings


Operating Temperature

-40 to + 85C

-40 to + 85C

SC connector application



Active device termination

Local Area Networks (LANs)

Data processing networks

Test equipment

Premise installations

Wide Area Networks (WANs)

Telecommunication networks
