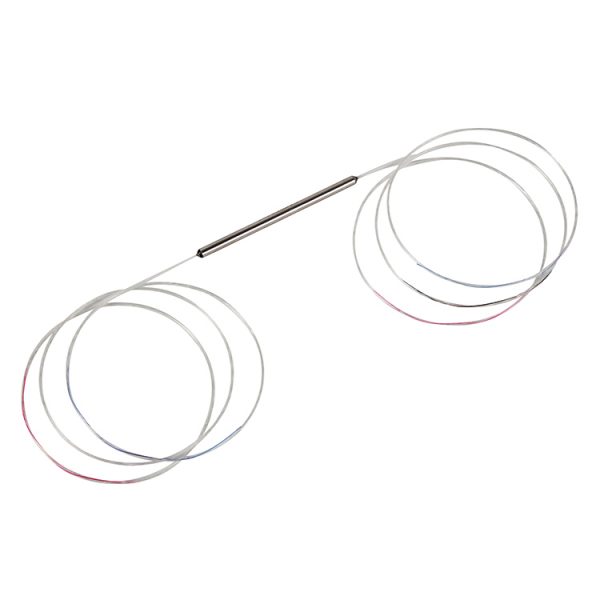

3X3 Monolithic Single Mode Coupler

Availability: In Stock

Type *

Grade *

Wavelength *

Coupling Ratio *

Port *

Package *

Fiber Type *

Fiber Diameter *

Fiber Length *

Connector *

Volume Price :$70 - $95

Add multiple items to the quote list and get a quote from us .

Request a Quote
Add the items to the quotation list, we will quote you price according to the total quantity , and you can continue to pay the order online if you accept our quotation.
Tag:

Description

Features Applications
  • Small Dimension
  • Low Insertion Loss
  • Low PDL
  • Optical Communication System
  • Optical Sensor
  • Instrument Testing


Performance Specifications

Parameter Specification
 Type 3×3 SSC 3×3 WBC
Operating wavelength (nm) 1310 or 1550 1310 or 1550
Operating bandwidth (nm) ±15 ±40
Grade P A P A
Typical excess loss (dB) 0.10 0.15 0.1 0.15
Insertion loss (dB) ≤5.6 ≤5.8 ≤5.8 ≤6.2
PDL (dB) ≤0.25 ≤0.3 ≤0.25 ≤0.3
Uniformity (dB) ≤1.0 ≤1.4 ≤1.3 ≤1.6
Directivity (dB) ≥55
Operating temperature ()℃ -40 ~ +85

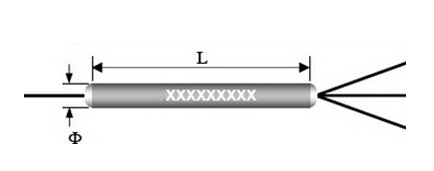

Dimensions (Ф×L)(mm) Ф3.0X54(250µm)
Ф4.0X65(900µm)

*The above specification is without connector.

**Other specifications can be made on customer request.
