1X4 Monolithic Multimode Couplers

Availability: In Stock

Grade *

Wavelength *

Package *

Fiber Type *

Fiber Diameter *

Fiber Length *

Connector *

Volume Price :$70 - $95

Add multiple items to the quote list and get a quote from us .

Request a Quote
Add the items to the quotation list, we will quote you price according to the total quantity , and you can continue to pay the order online if you accept our quotation.
Tag:

Description

Features Applications
  • Mini size
  • Good uniformity
  • High stability and reliability
  • Optical communication systems
  • Optical LAN
  • Optical fiber sensors

Performance Specifications

Parameter Specification
Type 1×4
Operating wavelength (nm) 850 or 1310, others on request
Operating bandwidth (nm) ±40
Grade P A
Typical excess loss (dB) 0.9 1.2
Insertion loss (dB) ≤7.8 ≤8.3
Uniformity (dB) ≤1.2 ≤1.5
Directivity (dB) ≥40
Operating temperature (℃) -40 ~ +85
Fiber type (μm) 50/125 or 62.5/125 Multi-Mode or others

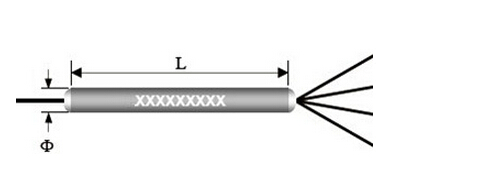

Dimensions (Ф×L)(mm) Ф3.0X54(250µm)
Ф4.0X65(900µm)

*The above specification is without connector.

**Other specifications can be made on customer request.
