Performance Specifications
| Parameter | Specification |
| Operating Wavelength(nm) | 1260~1650 |
| Coupling Ratio (%) | 1-50 |
| Excess Loss (Typical )(dB) | 0.10(P Grade); 0.15(A Grade) |
| Directivity (dB) | >55 dB |
| Operating Temperature | -40 ° C – 85 ° C |
| Storage Temperature | -40 ° C – 85 ° C |
| Fiber Type | Corning Singlemode SMF-28 , DS Fiber, or Flexcore |
| Fiber Pigtail Length (m) | 1meter |
| Port Configuration | 1×2 or 2×2 |
| Package Dimension | Package A, B, C |
Coupling Ratio/Insertion Loss Conversion Chart
| Coupling Ratio | Max. Insertion Loss | |
| Premium | A Grade | |
| 50/50 | 3.8 | 4.0 |
| 40/60 | 5.1/3.1 | 5.3/3.3 |
| 30/70 | 6.4/2.2 | 6.6/2.4 |
| 20/80 | 8.2/1.5 | 8.6/1.7 |
| 10/90 | 11.5/1.0 | 12.2/1.1 |
| 5/95 | 14.6/0.8 | 15.5/0.9 |
| 1/99 | 22.5/0.55 | 23.5/0.75 |
1. The above specification is without connector
2. Other specifications can be made on customer request.

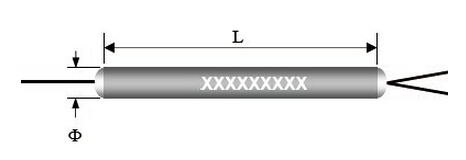

Package Information
| Package Type | A | B | C |
| Fiber Diameter | 250μm bare fiber | 900μm loose tube | 900μm/2mm/3mm loose tube |
| Dimensions (Ф×L) | Ф3.0mm×54mm | Ф3.0mm×60mm | 90mm×20mm×9.5mm |
