980/1064nm Filter WDM

Availability: In Stock

Wavelength *

Fiber Diameter *

Fiber Length *

Connector *

Volume Price :$70 - $95

Add multiple items to the quote list and get a quote from us .

Request a Quote
Add the items to the quotation list, we will quote you price according to the total quantity , and you can continue to pay the order online if you accept our quotation.
Tag:

Description

Features
Applications

  • Low Insertion Loss
  • High isolation
  • High Stability and Reliability
  • Fiber laser
  • Fiber amplifier


Performance Specifications

Parameter Specification
Type 980/1064nm Filter WDM
Operating Wavelength (nm) Pass Band:980±10 Reflection Band:1064±30
Max. Insertion Loss (dB) 0.8 0.6
Isolation (dB) > 25 > 12
PDL (dB) < 0.10
Return Loss (dB) > 50
Thermal Stability(dB/℃) ≤0.005
Power Handling (Max)( (mW) ≤300
Tensile Load(N) <5
Fiber Type HI 1060
Fiber Pigtail Length (m) 1m or custom length
Operating Temperature (°C) -10 ~ +70
Storage Temperature (°C) -40 ~ +85

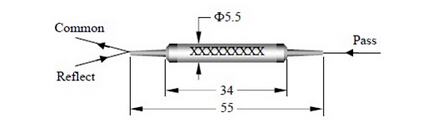

Package Dimensions (mm) Ø5.5 x L35

*Above specifications are for device without connector.
