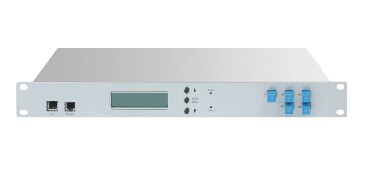

1U Optical Line Protection Equipment

Regular Price: $900.00 (USD)

Availability: In Stock

customizd:

Buy it now with regular price.

Volume Price :$630 - $855

Add multiple items to the quote list and get a quote from us .

Request a Quote
Add the items to the quotation list, we will quote you price according to the total quantity , and you can continue to pay the order online if you accept our quotation.

Description

      Optical line protection equipment is used in backup optical line protection system. The equipment uses advanced automatic optical line switching module, which is used in optical communication system for main or backup switching optical devices, it can automatically identify the status of the optical line signal is in main status or backup status, then it will switch optical line immediately to ensure when the main line broken, the backup line is still working, to improve the operator’s service quality.

1+1 Protection Mode

Features

  • Indicator light display the status of the optical line interface.
  • Set switch threshold power and alarm threshold power by LCD in the equipment or Network management.
  • Two working mode: automatically return mode and non-automatically return mode.
  • Receiver’s switching time has automatic mode, manual mode and remote mode.
  • Automatic switching time lower than 20ms.
  • 1+1 power supply backup system, hot plugging support.
  • Network management based on SNMP, CLI, WEB optional.

    • Technical Parameter

    Parameters
    Specification
    Adjustment wavelenght
    1310 & 1550nm
    Sender insertion loss
    < 4.0dB
    Receiver insertion loss
    < 1.5dB
    Return loss
    ≥ 45dB
    Crosstalk
    > 55dB
    PDL
    <0.1dB
    Optical power monitoring
    -50~20dBm
    Switching time
    < 20ms
    Automatic switch threshold power
    -30dBm
    Switch mode
    Automatic, manual, remote
    Input/Output optical interface
    SC/APC、SC/PC、FC/APC、FC/PC
    Network management jack
    RJ45、RS232
    Network management mode
    CLI 、WEB、SNM
    Dimension
    19”1U case
    Operating Temperature
    -10℃ ~ 60℃
    Storage Temperature
    -40℃ ~ 80℃
    Humidity
    5% ~ 95%
    Power
    220V/AC，50Hz or 48V/DC

    1:1 protection mode:

    Technical Parameter

    Parameters
    Specification
    Adjustment wavelenght
    1310 & 1550nm
    Sender insertion loss
    < 1.5dB
    Receiver insertion loss
    < 1.5dB
    Return loss
    ≥ 45dB
    Crosstalk
    > 55dB
    PDL
    <0.1dB
    Optical power monitoring
    -50~20dBm
    Switching time
    < 40ms
    Automatic switch threshold power
    -30dBm
    Switch mode
    Automatic, manual, remote
    Input/Output optical interface
    SC/APC、SC/PC、FC/APC、FC/PC
    Network management jack
    RJ45、RS232
    Network management mode
    CLI 、WEB、SNM
    Dimension
    19”1U case
    Operating Temperature
    -10℃ ~ 60℃
    Storage Temperature
    -40℃ ~ 80℃
    Humidity
    5% ~ 95%
    Power
    220V/AC，50Hz or 48V/DC

    Product Specification

    Weight 5 g
