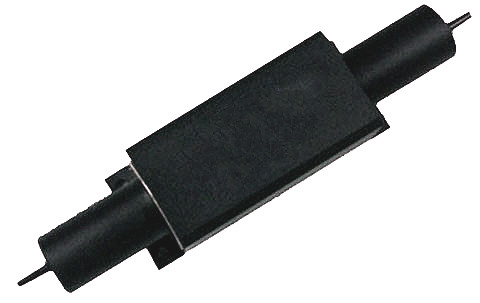

1064nm High Power Polarization Independent Isolator- 20~50W

Availability: In Stock

Wavelength *

Optical Power *

Package Dimensions *

Fiber Jacket on Input & Output *

Connector Type on in &out *

Fiber Length *

Volume Price :$70 - $95

Add multiple items to the quote list and get a quote from us .

Add the items to the quotation list, we will quote you price according to the total quantity , and you can continue to pay the order online if you accept our quotation.
Tag:

Description

Features
Applications
  • High isolation
  • Low insertion loss
  • Excellent environmental stability and reliability
  • Research
  • Free space communications
  • Fiber lasers


Performance Specifications

Parameters Values
Central Wavelength(nm) 1064/1080
Operating Wavelength Range(nm) ±10
Typ. Peak Isolation(dB) 35
Min. Isolation in Band (at 25℃) (dB) 25
Typ. Insertion Loss (dB) 0.80
Max. Insertion Loss (at 25℃) (dB) 1.20
Max. Polarization Dependent Loss (dB) 0.2
Min. Return Loss(dB) 50
Max. Peak Plwer(kW) 20,50
Optical Power (CW)(W) 20,30,50
Fiber Type 20/400 DC Fiber or  Specify
Tensile Load(N) 5
Operation Temperature(℃) 0 ~ +50
Storage Temperature Range(℃) -20 ~ +75

* Above specification are for device without connector, and may change without notice.


Package Dimension

  • 0

    0 reviews

  • 5 Stars
    4 Stars
    3 Stars
    2 Stars
    1 Stars

There are no reviews yet.

Your email address will not be published. Required fields are marked *

High Power Isolator
High Power Isolator,which handles power from 300mW to 50W, minimize back reflection and back scattering in the reverse direction for any state of polarization. The device has an epoxy-free optical path and provides high isolation with low insertion loss over a wide wavelength range. It can be used in high power applications such as High Power Fiber Amplifier, Fiber Laser, and Instrumentation applications.
