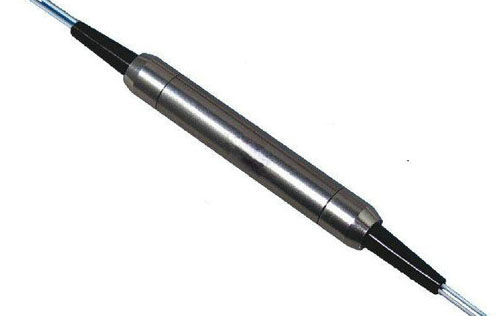

Tap Coupler/Isolator Hybrid Combination

Availability: In Stock

Stage *

Tap Ratio *

Fiber Diameter *

Fiber Length *

Connector *

Volume Price :$70 - $95

Add multiple items to the quote list and get a quote from us .

Request a Quote
Add the items to the quotation list, we will quote you price according to the total quantity , and you can continue to pay the order online if you accept our quotation.
Tag:

Description

Features
Applications
  • Wide Operating Wavelength Range
  • Compact Size
  • Low insertion loss
  • High channel Isolation
  • Ultra Low PDL & PMD
  • High stability and reliability
  • Epoxy free on optical path
  • Fiberoptic Amplifiers
  • CATV Fiberoptic Links
  • WDM Systems
  • Fiberoptic Instruments
  • Transmitters and Fiber Lasers
  • Laboratory R&D



Performance Specifications

Parameter
 Single Stage Dual Stage
Operating Wavelength (nm)
 1550
Tap Channel Isolation Loss(dB)
 1%(19.0~20.8), 2%(16.2 ~ 18.0), 5%(12.2 ~ 14.0)
Minimum Isolation (dB)
 31 45
Signal Channel Typical Insertion Loss (dB)
 0.6 0.8
Signal Channel Maximum Insertion Loss (dB)
 0.8 1.0
Polarization Dependent Loss (dB)
 < 0.10
Bandwidth (nm)
 +15 +30
Return Loss (dB)
 > 55
Power Handling (mW)
 300
Operating Temperature (°C)
 -5 ~ +70
Storage Temperature (°C)
 -40 ~ +85
Package Dimensions (mm)
 Ø 5.5 x L38
Fiber Length (Min.)
 1 Meter
Fiber Type
 SMF-28 fiber

*Values are referenced without connector loss, specifications may change without notice.

**Other specifications can be made on customer request.
