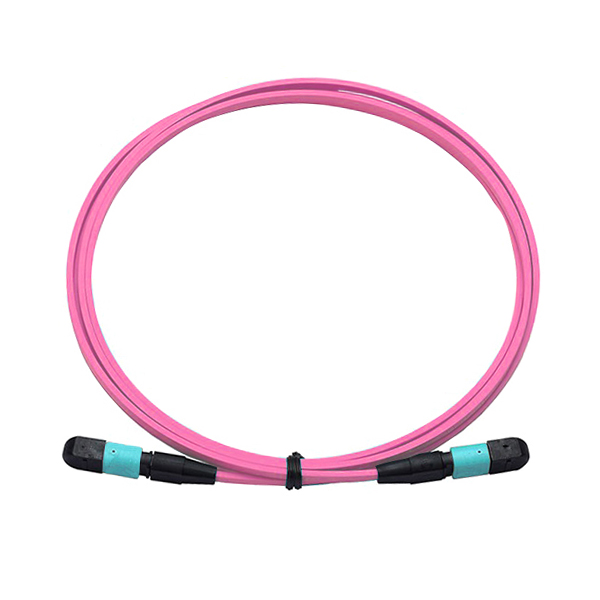

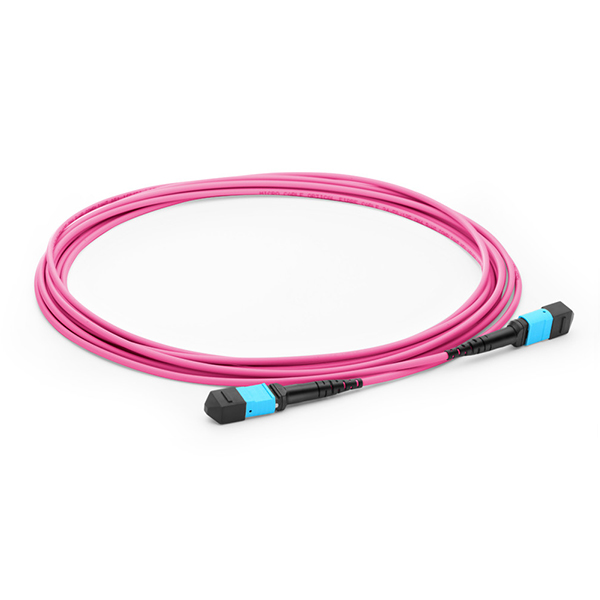

12 Fibers Multimode OM4 MPO Trunk Cable

Regular Price: $22.39 (USD)

Availability: In Stock

Total Length *

Fiber Distribution *

Polarity *

Connector 1 *

Connector 2 *

Buy it now with regular price.

Volume Price :$15.67 - $21.27

Add multiple items to the quote list and get a quote from us .

Add the items to the quotation list, we will quote you price according to the total quantity , and you can continue to pay the order online if you accept our quotation.
  • High Quality MPO connector from Japan
  • Corning fiber inside
  • 3 year warranty

Product Specification

Weight 35 g
Connector Type

MPO-MPO

Fiber Mode

Multimode OM4

Fiber Count

12 Fibers

Insertion Loss

0.7dB/0.35dB

Return Loss

≥20dB

Polish Type

UPC-UPC

Cable Jacket

LSZH

Jacket OD

3.0mm

Installation Tensile Load

100 N

Long-Term Tensile Load

50 N

Mini Bend Radius

7.5mm

Storage Temperature

-40°C to +85°C

Operating Temperature

-10°C to +70°C

Connector Type

MPO-MPO

Fiber Mode

Multimode OM4

Fiber Count

12 Fibers

Insertion Loss

0.7dB/0.35dB

Return Loss

≥20dB

Polish Type

UPC-UPC

Cable Jacket

LSZH

Jacket OD

3.0mm

Installation Tensile Load

100 N

Long-Term Tensile Load

50 N

Mini Bend Radius

7.5mm

Storage Temperature

-40°C to +85°C

Operating Temperature

-10°C to +70°C

  • 0

    0 reviews

  • 5 Stars
    4 Stars
    3 Stars
    2 Stars
    1 Stars

There are no reviews yet.

Your email address will not be published. Required fields are marked *

Features

  • Low Insertion Loss and Back Reflection Loss
  • Good Enchangeability
  • Good Durability
  • High Temperature Stability
  • Applications

  • High Density Wiring System
  • Wiring in Communication Base Station and Distribution Case
  • Jumper Connection
  • 40G and 100G System, QSFP Module
  • Optical Fiber Communication System, CATV
  • LANs and WANs
  • FTTP
  • MPO Trunk Cable Type A:

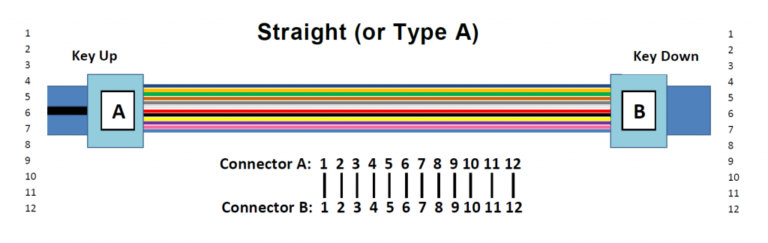

    Type A cable also known as straight cable, is a straight through cable with a key up MPO connector on one end and a key down MPO connector on the opposite end. This makes the fibers at each end of the cable have the same fiber position. For example, the fiber located at position 1 (P1) of the connector on one side will arrive at P1 at the other connector. The fiber sequence of a 12 fiber MPO Type A cable is showed as the following:

    MPO Trunk Cable Type A

    MPO Trunk Cable Type B:

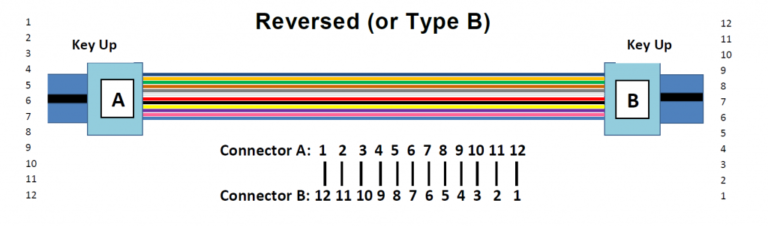

    Type B cable (reversed cable) uses key up connector on both ends of the cable. This type of array mating results in an inversion, which means the fiber positions are reversed at each end. The fiber at P1 at one end is mated with fiber at P12 at the opposing end. The following picture shows the fiber sequences of a 12 fiber Type B cable.

    MPO Trunk Cable Type B:

    MPO Trunk Cable Type C:

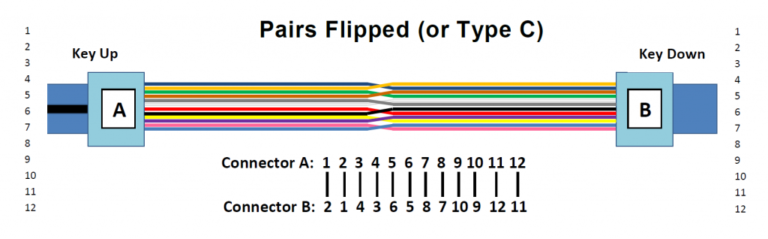

    Type C cable (pairs flipped cable) looks like Type A cable with one key up connector and one key down connector on each side. However, in Type C each adjacent pair of fibers at one end are flipped at the other end. For example, the fiber at position 1 on one end is shifted to position 2 at the other end of the cable. The fiber at position 2 at one end is shifted to position 1 at the opposite end etc. The fiber sequence of Type C cable is demonstrated in the following picture.

    MPO Trunk Cable Type C
