Description

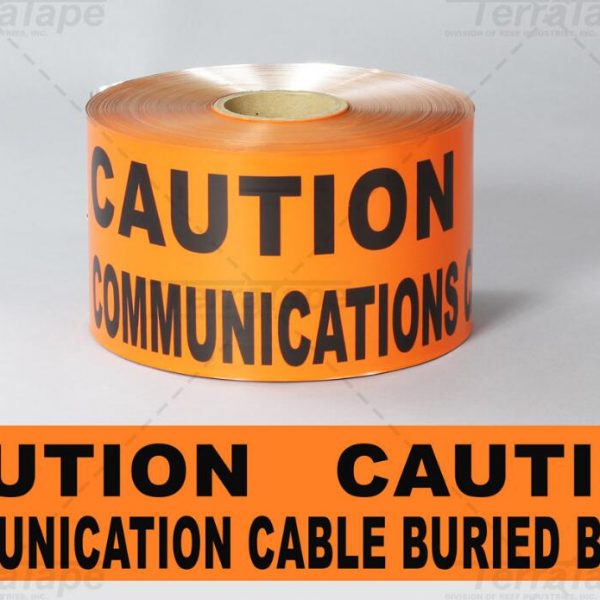

This is a tri-layer laminate consisting of a printed film, a solid foil core and a clear encapsulating film. It is designed to protect, identify and locate underground utility lines.

The solid foil core is encased between a 100% virgin polyolefin pigmented film and a clear protective film that allows a full view of the foil to ensure continuity. The solid core provides for detectability utilizing either the inductive or conductive modes using a pipe and cable locator.

The ink used to print the material is permanent and cannot be removed by normal handling or upon burial.

The material and ink are chemically inert and will not degrade when exposed to acids, alkalies and other destructive substances commonly found in soil.

It is available in the colors red, orange, yellow, blue and green. Other colors may be available upon request.

Physical Properties And Typical Values

Porperty	Astm Test Method	U.S. Value	Metric Value
Thickness Overall	D-2103	6.0 MIL	0.15 MM
Thickness Foil Core	D-2013	0.30 MIL	7.62 Microns
Foil Purity	–	99%+	99%+
Weight	D-2013	34 LB/1000 FT²	16.6 KG/100 M²
2" Tensile*	D-882	45 LBF	201 N
2" Tensile*	D-882	3600 PSI	25 MPA
3" Tensile*	D-882	68 LBF	302 N
3" Tensile*	D-882	3600 PSI	25 MPA
6" Tensile*	D-882	136 LBF	604 N
6" Tensile*	D-882	3600 PSI	25 MPA
Elongation	D-882	60%	60%
Printability	D-2578	≥ 40Dynes	≥ 40Dynes
