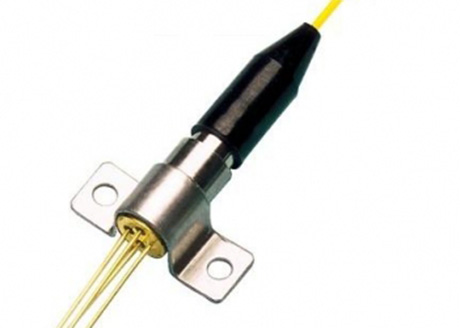

CWDM DFB Pigtail Laser Module

Availability: In Stock

Isolator *

Output Power *

Saddle *

Connector *

PIN Assignment *

Volume Price :$70 - $95

Add multiple items to the quote list and get a quote from us .

Request a Quote
Add the items to the quotation list, we will quote you price according to the total quantity , and you can continue to pay the order online if you accept our quotation.
Tag:

Description

Features

  • MQW DFB LD
  • Low threshold current
  • High output power
  • Built-in InGaAsP monitor PD
  • Wide temperature range operation(Tc=-45 to +85℃)

Applications

  • Audio, Video，Data CWDM Transmission

Parameters

Absolute maximum ratings

ParameterSymbolMin.Max.UnitTest conditionStorage temperatureTst-40+100℃-Operating temperatureTop-40+85℃-Reverse voltageVR2VCWSoldering temperature/time260/10℃/S-

Optical & electrical characteristics

ParameterSymbolMin.Typ.Max.UnitTest conditionCenter wavelengthλc1250~1650 nmnm-Threshold currentIth0.51.52mA1310nm,25℃Spectral widthΔλ-12nmCW，Ith+20mASide mode suppression ratioSMSR3040-dBOutput powerP-24mWCW，Ith+20mAOperating voltageVop-1.11.5VCW，Ith+20mARise/ Fall timeTr/Tf-0.30.7nSCW，Ith+20mAMonitor currentIm0.10.7-mACW，Ith+20mAOptical IsolationIso30–dB25℃

Ordering Information

Ordering information

Isolator Output Power Saddle Connector PIN Assignment
0:NO

1:Single

2:Double

 1:0.3-0.5mW

2:0.5-1.5mW

3:1.5-2mW

4:2-4mW

 1:A

2:B

3:C

4:D

5:E

 00:NO

FC:FC

ST: ST

SC:SC

 B: type B

C: type C
