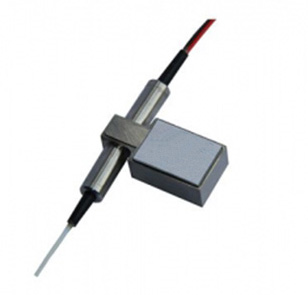

1×2 Single Mode Mechanical Optic Switch

Availability: In Stock

State *

Operating wavelength *

Grade *

Fiber type *

Fiber length *

In/Out connector *

Volume Price :$70 - $95

Add multiple items to the quote list and get a quote from us .

Request a Quote
Add the items to the quotation list, we will quote you price according to the total quantity , and you can continue to pay the order online if you accept our quotation.
Tag:

Description

Features

  • Unmatched Low Cost
  • Low Insertion Loss
  • High Channel Isolation
  • Highly Stable and Reliable
  • Epoxy-Free Optical Path

Applications

  • The light signal top/bottom road
  • System monitoring
  • Instrument equipment
  • Light signal routing

Parameters

Parameters Specifications
Operating wavelength  (nm) 1260～1360 or 1510～1610 1310/1550 ± 40
Insertion loss (dB) P grade A grade P grade A grade
< 0.6 < 0.8 < 0.7 < 1.0
Wavelength dependant loss  (WDL) (dB) ≤ 0.25 ≤ 0.25 ≤ 0.25 ≤ 0.30
Polarization dependant loss(PDL) (dB) ≤ 0.05 ≤ 0.05 ≤ 0.05 ≤ 0.05
Temperature dependant loss(TDL)(dB) < 0.15 < 0.20 < 0.15 < 0.20
Cross talk (dB) >55 >55 >55 >55
Durability (dB) < ± 0.05
Return loss (dB) > 55
Switching time (ms) <10 (Typ.4)
Coil resistance (Lead Angle 1-5 or 6-10) (ohms) 178 ± 10%
Operating voltage(V) 5
Maximum power load (mW) 500
Durability  (cycle ) >10 million
Operating temperature (°C) 0 ～ +70
Storage temperature  (°C) -45 ～ +85
Fiber type SMF-28
Fiber length  (m) 1.0 +/- 0.1
Dimension  (LxWxH) (mm) 27.2×12. 8×7.5

Insertion loss is not within connector.

Electronic pins structure:

Non-latching

Optical path Condition
PIN1 PIN10 PIN3-2 PIN3-4 PIN8-9 PIN8-7
  1—3 N/A N/A CLOSE OPEN CLOSE OPEN
1—2 GND +5v OPEN CLOSE OPEN CLOSE

Latching

Optical path Circuit driver Condition
PIN1 PIN5 PIN10 PIN6 PIN3-2 PIN3-4 PIN8-9 PIN8-7
  1—2 N/A N/A +5v GND OPEN CLOSE OPEN CLOSE
 1—3 +5v GND N/A N/A CLOSE OPEN CLOSE OPEN

Ordering Information

Type Condition Operating wavelength Port Grade Fiber type Fiber length In/Out connector type
SMS



 1=non-latching

2=latching



 15=1550±40nm

13=1310±40nm

35=1310/1550nm



 0102=1×2

0104=1×4

0108=1×8

01016=1×16

01032=1×32

01064=1×64

0100=other

 1=P grade

2=A grade



 1=Bare Fiber

2=900um Jacket

 1=1 Meter

2=2 Meter



 1=None

2=FC/APC

3=FC/PC

4=SC/APC

5=SC/PC

6=ST

7=LC
